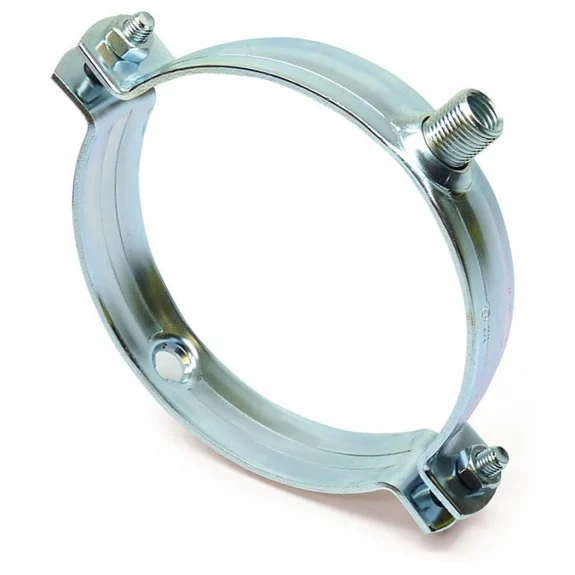

SIKLA D3G HEAVY DUTY

SIKLA D3G HEAVY DUTY

For installation of pipes required for all M&E services in industrial, residential and public buildings.

Sizes 15 to 129 mm are equipped with welded nuts for the clamping bolts.

On the joint side, the clamping bolt is pre-assembled; the clamping bolt on the opposite side is mounted into the bore hole and retained by a plastic washer, thus preventing any accidental unscrewing.

For sizes 133 and larger the clamping bolts and the required nuts are supplied in loose form.

From size 31 - 35 mm with welded in 3G triple thread nut.

For further adapter-based connection options via the external thread of the 3G triple thread nut, see product "Adapter AD f/f".

Installation

For FM applications, at least M10 must be used.
For VdS applications > 2“ to 4”, at least M10 must be used.

Technical Data

Size
[mm]

Working load
(tension)

Tightening torque
[Nm]

15 - 30

2.0 kN

2

31 - 72

5.0 kN

2

76 - 129

5.0 kN

3

133 - 173

8.0 kN

5

176 - 316

12.5 kN

10

Material:

Steel, electro-galvanised

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Price Quantity
PC76-81D3G SIKLA D-3G UNLINED CLAMP 76 TO 81MM 107079
21 In Stock for despatch
£19.80 (exc VAT) per EACH
£23.76 (inc VAT)
-
+
PC124-129D3G SIKLA D-3G UNLINED CLAMP 124-129MM 107121
3 In Stock for despatch
£22.40 (exc VAT) per EACH
£26.88 (inc VAT)
-
+
PC133-140D3G SIKLA D-3G UNLINED CLAMP 133-140MM 107130
3 In Stock for despatch
£30.80 (exc VAT) per EACH
£36.96 (inc VAT)
-
+
PC149-155D3G SIKLA D-3G UNLINED CLAMP 149-155MM 107149
8 In Stock for despatch
£31.40 (exc VAT) per EACH
£37.68 (inc VAT)
-
+
PC167-173D3G SIKLA D-3G UNLINED CLAMP 167-173MM 107167
4 In Stock for despatch
£47.60 (exc VAT) per EACH
£57.12 (inc VAT)
-
+
PC207-216D3G SIKLA D-3G UNLINED CLAMP 207-216MM 148939
1 In Stock for despatch
£38.90 (exc VAT) per EACH
£46.68 (inc VAT)
-
+
PC219-225D3G SIKLA D-3G UNLINED CLAMP 219-225MM 107200
Out of Stock
£46.40 (exc VAT) per EACH
£55.68 (inc VAT)
-
+
